Torque Tester Apparatus + IEC 60065 - Figure 11

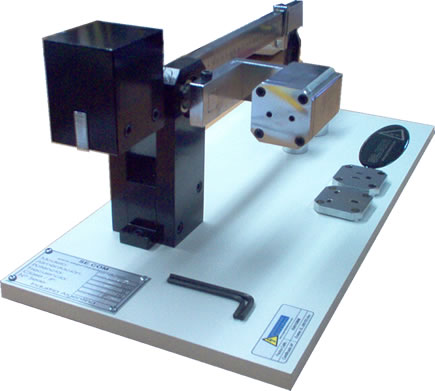

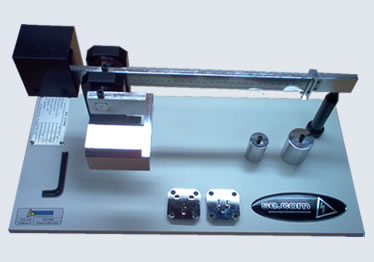

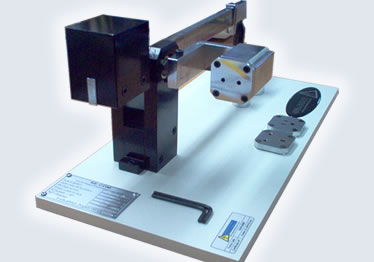

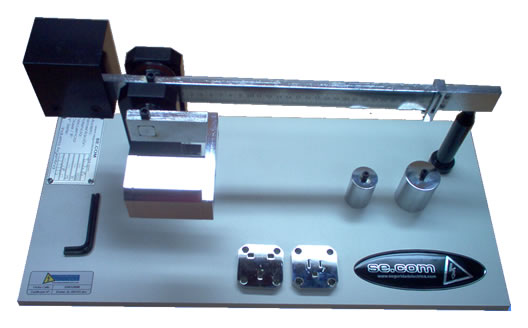

The TORQUE TESTER APPARATUS from Seguridad Electrica - designed according to IEC 60065 - is a test to check cuplé done by various elements that are connected to sockets.

Download Brochure

The TORQUE TESTER APPARATUS from Seguridad Electrica - designed according to IEC 60065 - is a test to check cuplé done by various elements that are connected to sockets.

A device provided with pins intended to be introduced into fixed socket-outlets shall not
impose undue strain on these socket-outlets.

Compliance is checked by engaging the device, as during intended use, with the socket-outlet of a test apparatus as shown in figure 11. The balancing arm of the test apparatus pivots about a horizontal axis through the centre lines of the contact tubes of the socket-outlet at a distance of 8 mm behind the engagement face of the socket-outlet.
With the device not in engagement, the balancing arm is in equilibrium, the engagement face of the socket-outlet being in the vertical position.
After the device has been engaged, the torque to be applied to the socket-outlet to maintain its engagement face in the vertical plane is determined by the position of a weight on the
balancing arm.

The torque shall not exceed 0,25 Nm.

Device Specifications
Material: Steel.
Finish:
  • Painting.
  • Chrome plating.
Distance: 8 mm behind the engagement face of the socket-outlet.
Weighs:
  • 0,250 Kg.
  • 0,500 Kg. (Optional).
Adapters:
  • Test Adapters according to customer requirements.
Dimensions:
  • 530 mm x 250mm x 200mm (h).
  • Weight: 7 Kg
Guarantee:
  • 12 months.
According to:
  • IRAM 4229.
  • IEC 60065.
Torque Tester Apparatus + IEC 60065 Torque Tester Apparatus + IEC 60065Torque Tester Apparatus + IEC 60065
