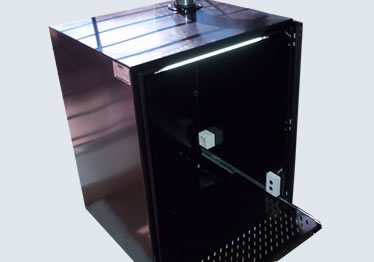

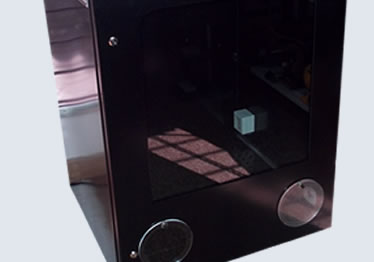

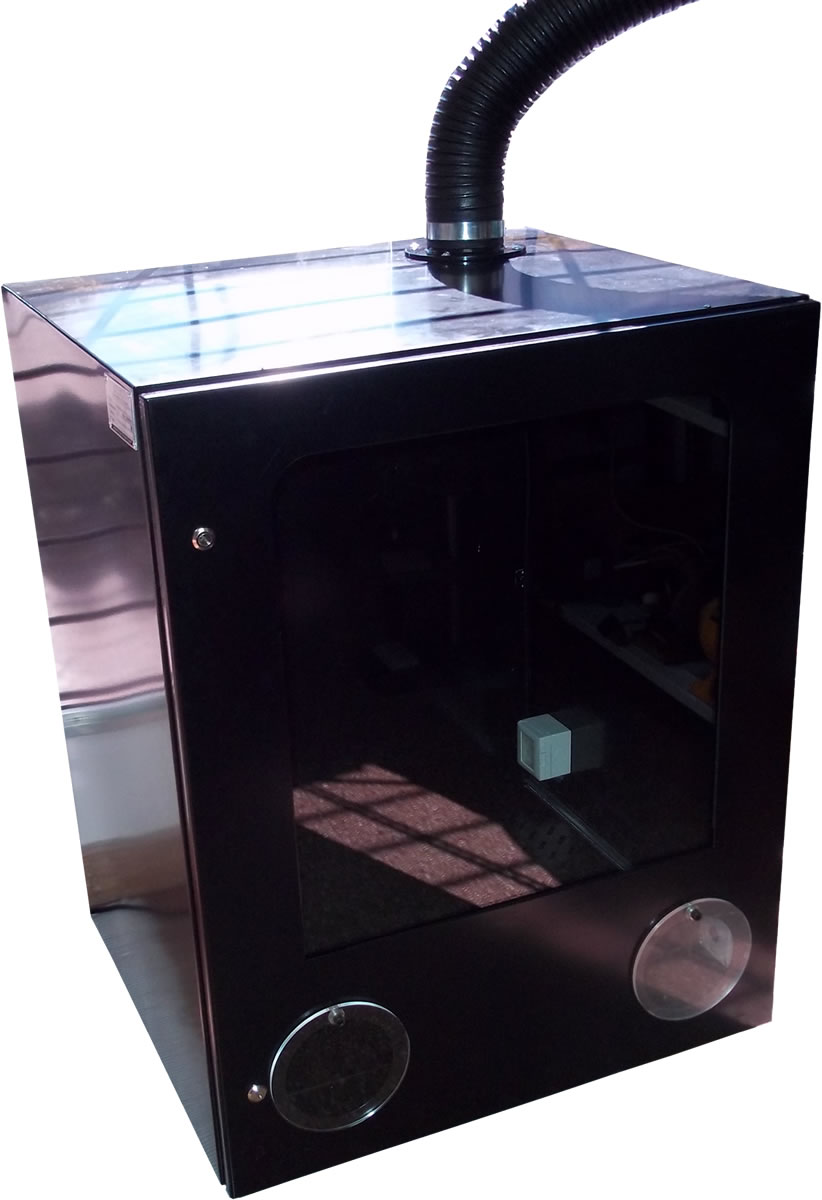

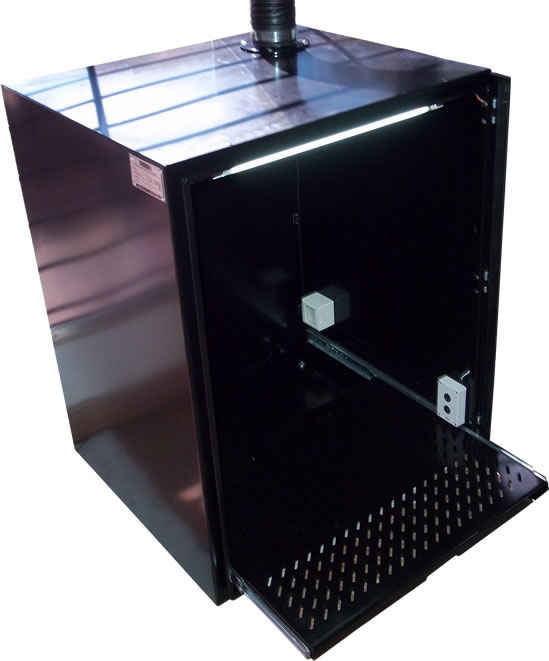

Test Chamber (IEC 60695-2-10 / Clause 5.4).

A device designed and manufactured for testing flammability.

Download Brochure

Device designed and developed for use in conjunction with the testing equipment or device Glow Wire Test Apparatus and Bunsen burner / Needle Flame.

Equipment Specifications:
Power Supply: 220Vca, 50 Hz, single-phase (115 Vca optional).
Characteristics:
  • Internal light.
  • Fan 4" for fume extraction.
  • Door with:
    • Glass.
    • 2 Openings to operate the equipment.
  • Volume: >0.5 m3.
  • Removable tray with sliding.
Dimensions:
  • 800mm x 700mm x 1000mm (h)
  • Weight: 73 Kg
Material:
  • Sheet steel.
Terminación:
  • Black painted.
