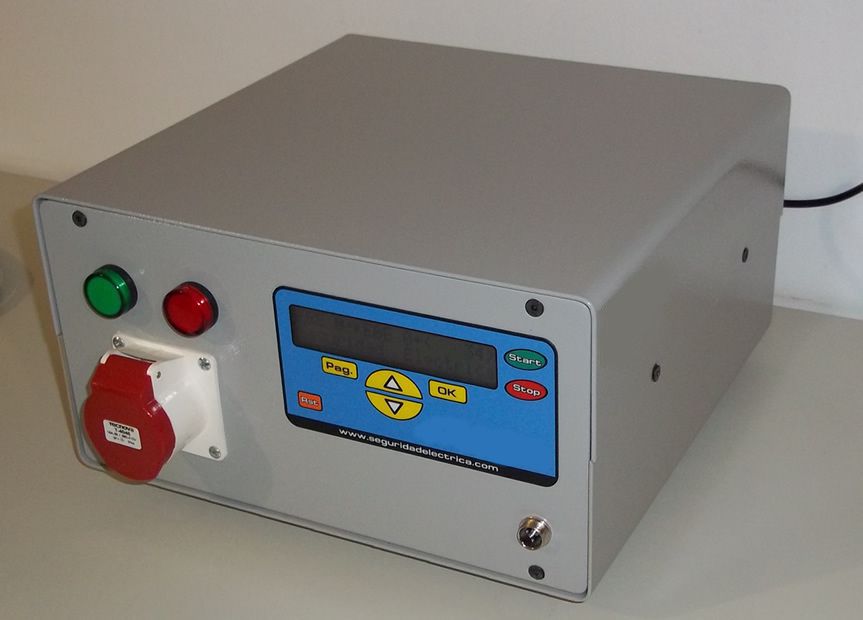

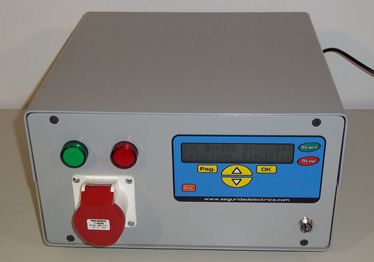

EBE 0: Test Equipment Basic - IEC 60335-1 (Annex A)

This equipment is used for the tests of the basic parameters of electrical safety in the end of lines of producing plants of household-electric, electronic equipment, lights, machines tools, etc of high volume.

Download Brochure

This equipment is used for the tests of the basic parameters of electrical safety in the end of lines of producing plants of household-electric, electronic equipment, lights, machines tools, etc of high volume.
Test makes them of:

The EBE 0 can make this test:

  • Ground Tests.
  • Dielectric Strenght.
    • Class I: 1000 Vac.
  • Starting of the equipment Under Test (DUT).

One is designed and made with the intention of determining the fulfillment of different norms (IEC 60335, IEC 60950, IEC 60065, IEC 60745, IEC 60598, IEC 61029, IEC 60601, IRAM 2092, IRAM 4029, IRAM 4220) as far as the requirements from the basic parameters of electrical security recommended by different world-wide Certifiers UL, DNV, IMQ, BVSQ, ITS, IRAM , CSA, VDE, DIN , INMETRO , etc.

The system of acquisition and control of data, is based on a microcontroller of last generation mounted on a electronic board development for Seguridad Electrica: selection, filtrate, processing and measurement of signals.

An auditory and visual signal, allows the pursuit of operation of the equipment as also the alert before a test does not conform.

As much the equipment as this platform was designed for a simple and dynamic handling .

The equipment is given with its Report of calibrations drawn up to national patterns (of optional way) and a user manual for its use.

The components used in the design guarantee an excellent quality of work.

Equipment Specifications
Power Supply: 220Vca, 50 Hz, 8 A, Single-phase.
Indicators:
  • Display LCD 2 lines.
  • LEDs of OK o FAULT.
Control: Totally controlled by microprocessor.
To Test: Equipment Class I (max. 6 A).
Dimensions:
  • 350mm x 350mm x 210mm (h).
  • Weight: 22 Kg.

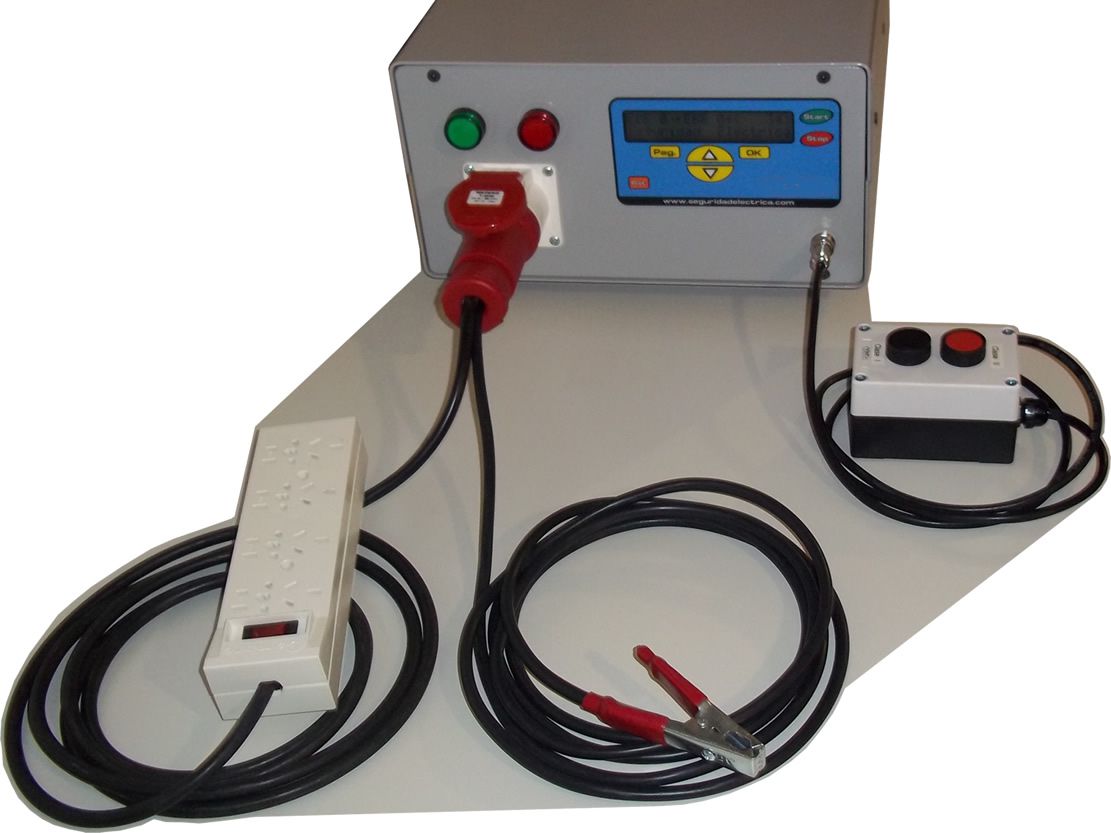

Accessories:

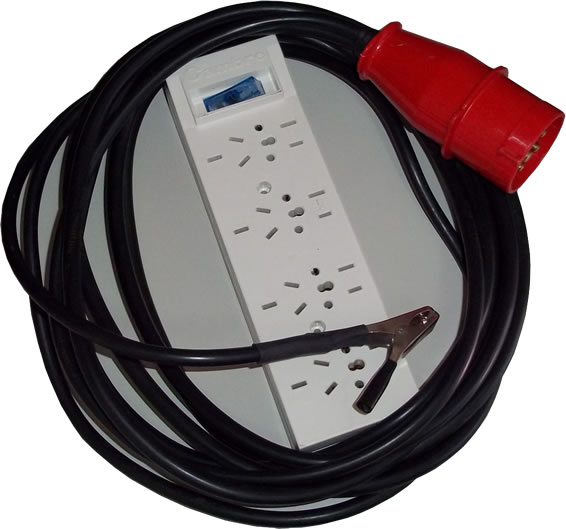

  • Plug Test.
  • Clamp Test.
  • Button box to start the test.
  • Verification SET (optional).
Guarantee:
  • 12 months.
According to: IEC 60335-1 Annex A.
