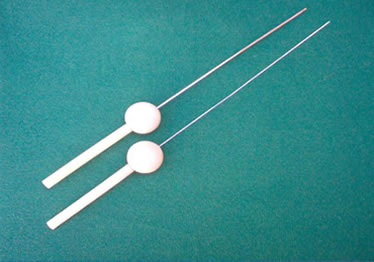

Test Rod Ø 2,5mm + Test Wire Ø 1mm.

Test Wire Ø 1 mm & Test Rod Ø2,5 mm for verification of accessibility to live parts. Designed and manufactured according to Figure 3 and 4 of IEC 61032.

Download Brochure

The Test Rod Ø2.5 mm is used to verify the protection of persons against access to hazardous parts. It is also used to verify protection against access with a tool.

The Test Wire Ø 1 mm is used to verify the protection of persons against access to hazardous parts. It is also used to verify protection against access with a wire.

Specifications
Material:
  • Stainless Steel.
  • Polyamide
Dimensions:
  • Ø 1 mm.
  • Ø 2,5 mm.
  • Test Lenght: 100mm +/- 0,2mm.
  • Polyamide Sphere: Ø 35 mm +/- 0,2mm.
According to:
  • Figure 3 (Test Probe C) of IEC 61032.
  • Figure 4 (Test Probe D) of IEC 61032.
