The Recorder of data of the Servo Controlled Voltage Stabilizers is the software that allows to show those data in graphs in screen (in real time) and to keep in archives those data to generate reports, analysis, to print or to export those data.

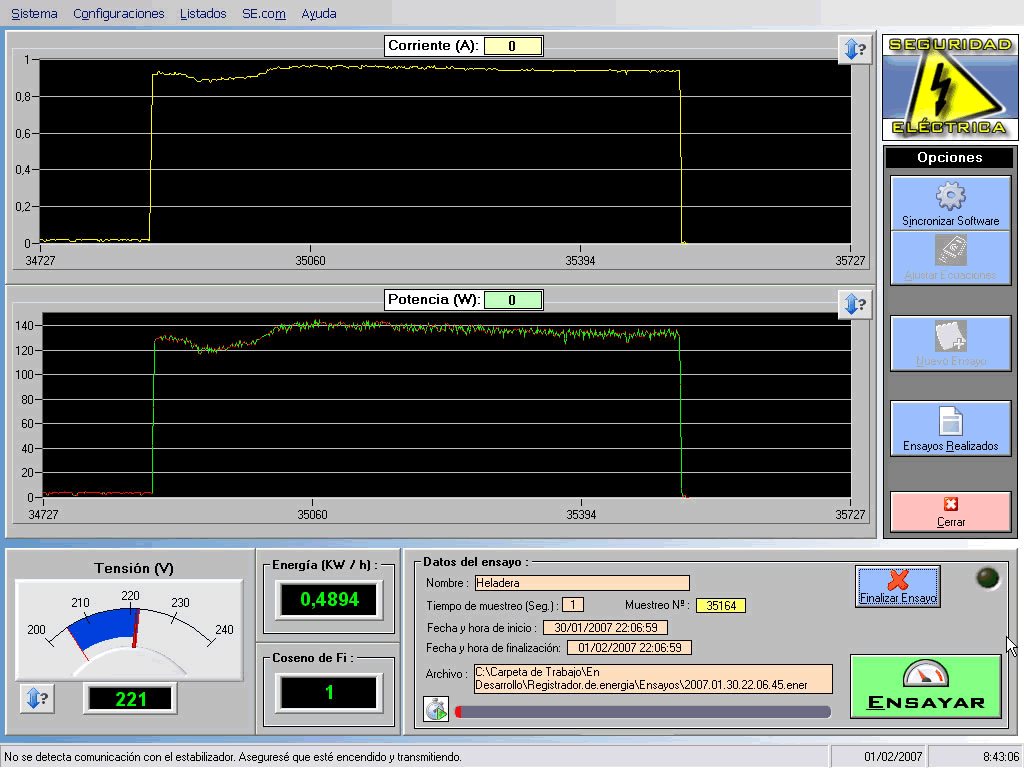

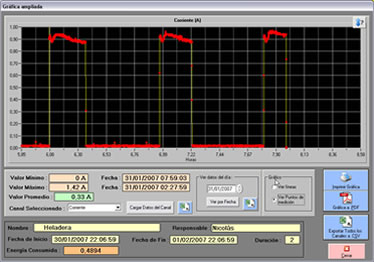

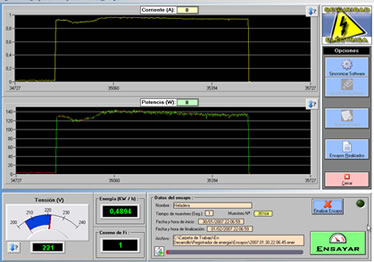

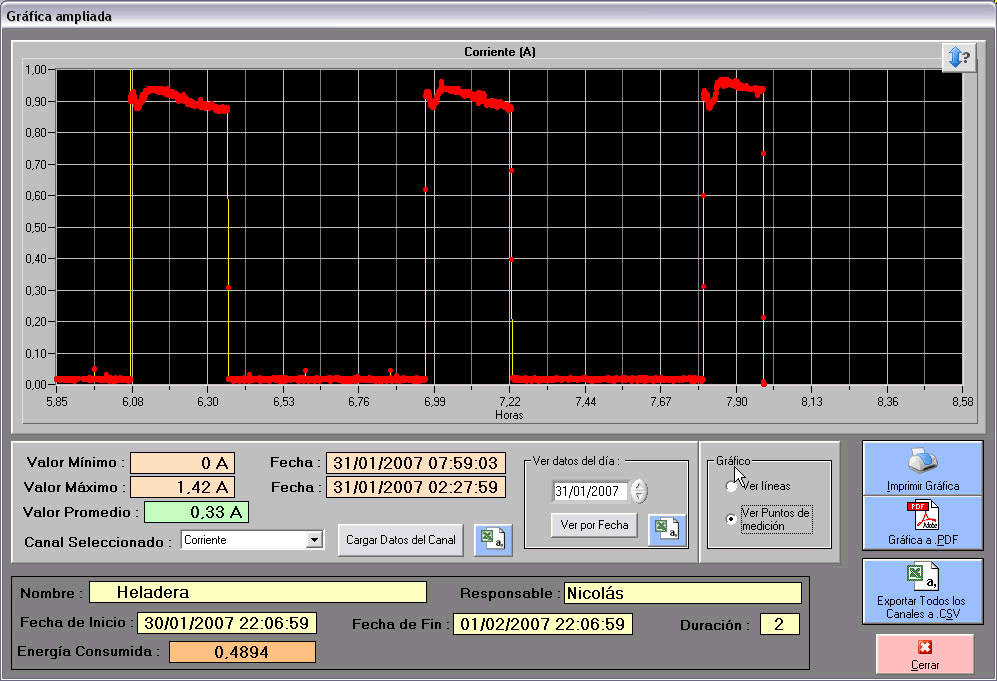

Through the graphs of Current and Power it is possible to be seen the shutdowns and startings of the equipment under test.

The Software of the Servo Controlled Voltage Stabilizers shows in screen and registers in file:

• Input Voltage: Voltage without stabilizing.
• Output Voltage: Stabilized Voltage.
• Current: Current consumed by the load.
• Power Factor: Cosine of Fi by the load.
• Power: Power consumed by the load.
• Energy: It registers the power consumption of the connected load.

Each of these data it is stored in 1 individual file soon to be able to generate the report of the test or to visualize a graph with all the data of each one of the channels.

This Software allows to generate the impression of these reports and made graphs of the test, also .pdf or .csv allows to export the data of a test to format to work it with any program that reads separated archives by commas.

This Software was designed for a simple and dynamic handling.

This combination guarantees a correct data processing to satisfy the necessities required for the fulfillment with the norm Iram 2404-3 for Power Efficiency or requirements that can demand an Electrical Product Certification or a ISO 9001.



Software Specifications
Specifications:	Software very easy to use. Saves the values of each test in real time to protect against possible loss data. Makes Test List. Export to CSV files (ASCII format). Export to PDF files (to send by email or print). Screen to Calibration. Print Graph report. Restricted access with user and password. To synchronize software to Servo Controlled Voltage Stabilizer. User Manual. Read data from RS232 port.
Registry:	See in Screen: Input Voltage: Voltage without stabilizing. Output Voltage: Stabilized Voltage. Current: Current consumed by the load. Power Factor: Cosine of Fi by the load. Power: Power consumed by the load. Energy: It registers the power consumption of the connected load.
Requeriments:	O.S.: Windows Xp. 1 RS232 Port. Resolution: 1024px x 768px
