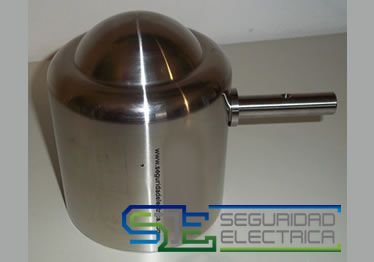

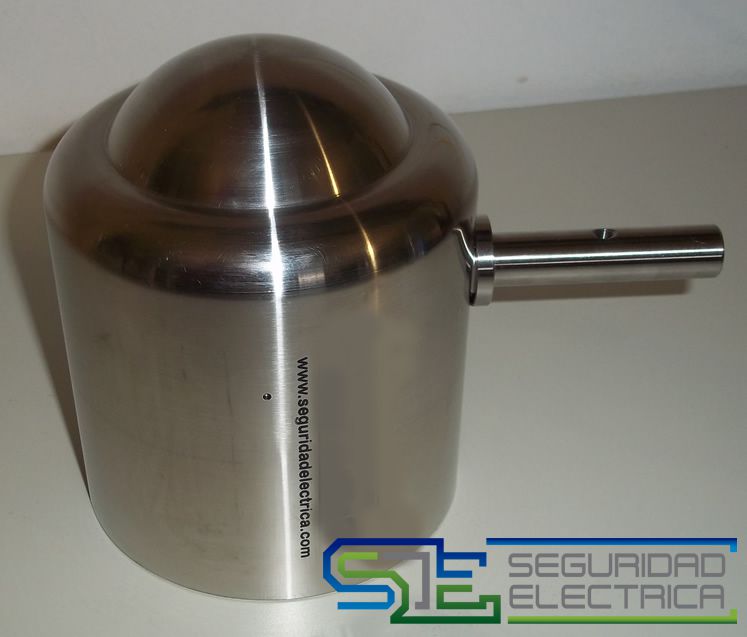

STRICKING ELEMENT 50J (IEC 60068-2-75)

Designed and manufactured according to IEC 60068-2-75 - figure A.6.

It have a impact mass of 10 Kg.

Download Brochure

Striking Element of 10Kg designed according to IEC 60068-2-75.

Striking Elemento 50J.

It's was designed to meet the requirements of international safety regulatory agencies such as UL, DNV, IMQ, BVSQ, ITS, IRAM , CSA, VDE, DIN , INMETRO.

Devices specifications:
Impact element:
  • Material:Stainless Steel.
  • Mass: 10 Kg.
Dimensions:
  • Ø125 mm x 150mm.
  • Radious Sphere: 50 mm.
Guarantee:
  • 12 months.
According to:
  • IEC 60068-2-75 / Figure A.6.
STRICKING ELEMENT 50J - (IEC 60068-2-75)
