Programmable off-switching Counter. - IEC / IRAM

Equipment designed and developed for cycling apparatus, appliances, power tools, etc.

Configurable cycling between 00:00 (minutes: seconds) to 59:59.

Configurable number of cycles between 10 to 999990.

Download Brochure

Equipment designed and developed for cycling apparatus, appliances, power tools, etc.

Configurable cycling between 00:00 (minutes: seconds) 59:59.

Independent cycle times (you can set it). That is, you can set a time for the ON state (Time ON) and a time to the OFF state (Time OFF).

Configurable number of cycles between 10 and 999990.

Making a test:

  • First, check the cycle time that the equipment has configured.

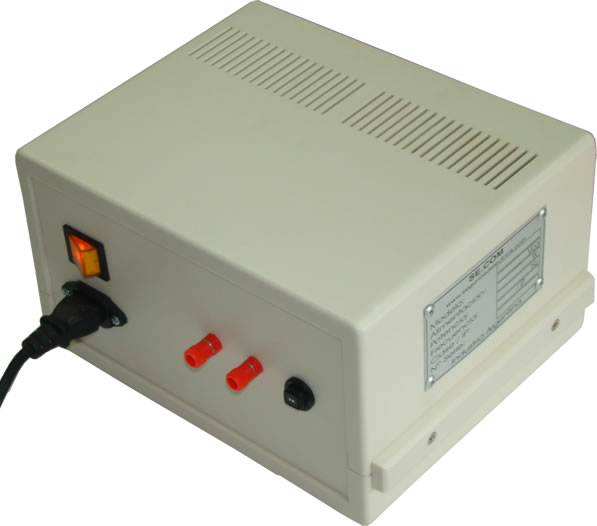

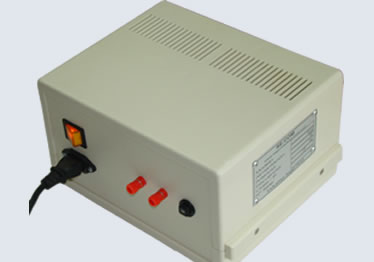

  • Connect the computer to cycle on the back of the computer output. Note that the maximum current that can flow is 3 Aca.

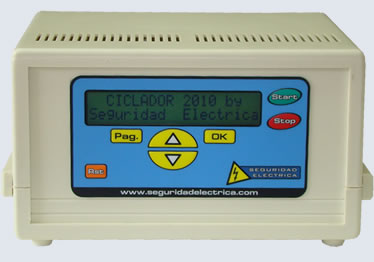

  • Position yourself on the screen No. 4 (home screen test).
  • Press the Start button and the computer automatically starts to cycle.
    • Operate the relay is short-circuited output terminals of the cycler. That is, it closes the normal open computer (Fig. 1).
    • Begin to display on screen as the ON time (minutes and seconds) is decremented until it reaches 0.
      The relay is turned off, ie open the exit from the apparatus (Fig. 2).
    • Following OFF elapsed, the team came to check whether the number of cycles set. If you reached the number of cycles, then it will display the End of test. But, again complete all the steps starting with point 1.
    • Upon reaching the set number of cycles, may beep to tell the operator that took place every cycle set


Fig. 1


Fig. 2

Equipment Specifications
Power Supply: 220Vca, 50 Hz, 6 A, single phase (115 Vca optional).
Max Current:
  • 3 Aca.
Indicadores:

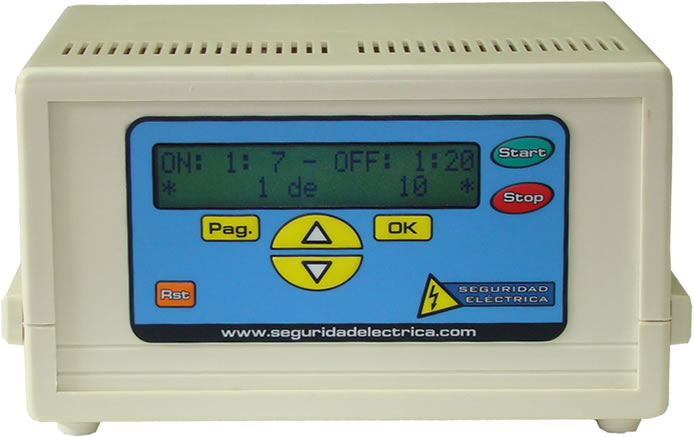

  • Display LCD 2 lines.
Setpoints:
  • Time ON: 00:00 to 59:59 (min:seg)
  • Time OFF: 00:00 to 59:59 (min:seg)
  • Cycles: 10 to 999990
Control: Totally controlled by microprocessor.
Guarantee:
  • 12 months.
Dimensions:
  • 260mm x 200mm x 140mm (h)
  • Weight: 1,8 Kg
Programmable off-switching Counter Programmable off-switching Counter Programmable off-switching Counter
