SWING PENDULUM / IMPACT TEST APPARATUS 2J - (IEC 60068-2-75)

The SWING PENDULUM / IMPACT TEST APPARATUS 2 from Se.com was designed and manufactured to perform the test specified in IEC 60068-2-75

It have a impact mass of 0.5Kg

Download Brochure

The Swing Pendulum / Impact Test Apparatus 2J from Se.com was designed and manufactured to perform the test specified in IEC 60068-2-75 and in many standards ( IEC 60335, IEC 60065, IEC 60745, IEC 61029, IEC 60950 ).

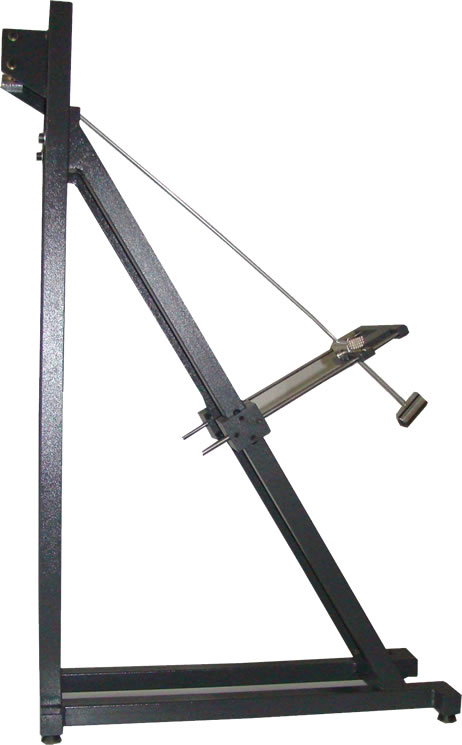

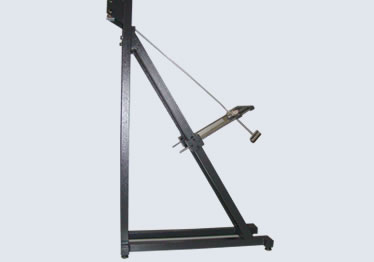

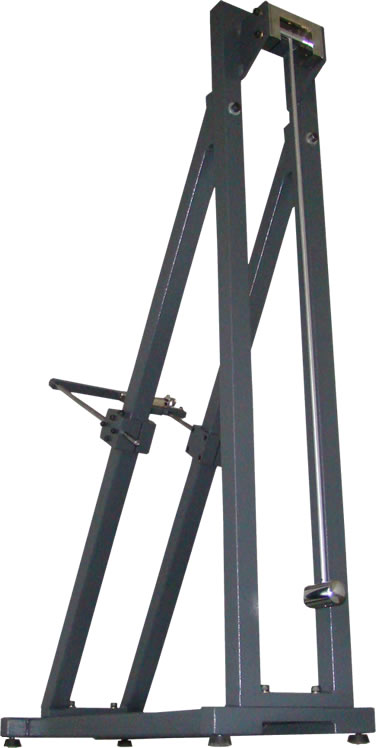

It consists of a supporting pipe structure an articulated arm having an impact mass of 0.5 Kg (Stricking Element) at end.

It's was designed to meet the requirements of international safety regulatory agencies such as UL, DNV, IMQ, BVSQ, ITS, IRAM , CSA, VDE, DIN , INMETRO.



Devices specifications:
Material:
  • Steel.

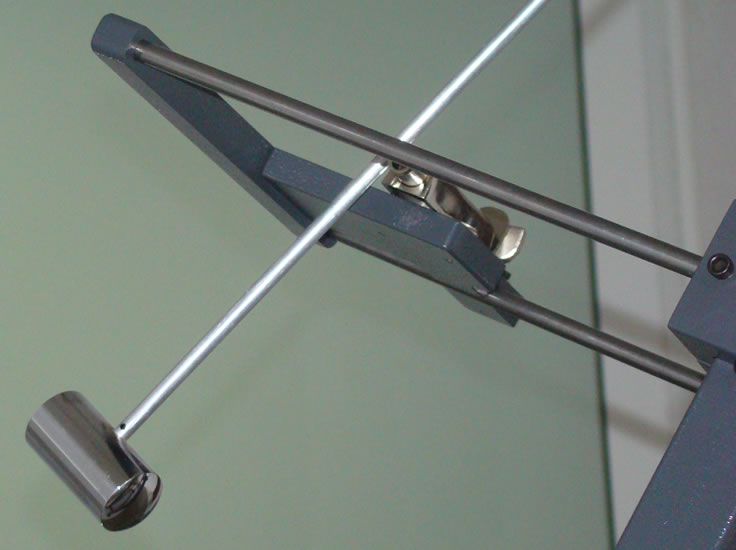

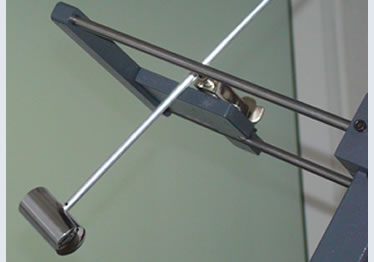

Impact element:
  • Material: Steel.
  • Radious Sphere: 25 mm.
  • Mass: 0,5 Kg.
Finish:
  • Chrome plating.
  • Painting.
Dimensions:
  • 300 mm x 800mm x 1300mm.
  • Weight: 28 Kg
Guarantee:
  • 12 months.
According to:
  • IEC 60068-2-75.
