Earth Bond Resistance Tester. 12 Vca / 30A - IEC 60335-1 / IEC 60598-1

In the manufacture of all electrical products, and especially when we are talking about appliances and lighting, there is a liability for the manufacturer to ensure electrical safety of their products.

Download Brochure

In the manufacture of all electrical products, and especially when we are talking about appliances and lighting, there is a liability for the manufacturer to ensure electrical safety of their products.

To achieve this international standard used in our country, such as the IEC 60335-1 and similar electrical appliances, General Requirements, Safety and IEC 60598-1 Luminaires, general requirements and tests, provide for the production of such trials minimum should be made to ensure this security.

The IEC 60335-1 in Annex A, provides the following tests at 100% of the production:

  • Earth continuity test (pat) with a current of not less than 10 A and a load voltage not exceeding 12 Vdc or Vac, for those Class I equipment (Class II and III are excluded). .

In the case of the lights, IEC 60598-1, provides in Annex Q, the following activities:

  • Earth continuity test (pat) with a current of not less than 10 A and a voltage gap between 6 and 12 Vdc or Vac, for those Class I equipment (Class II and III are excluded). .

These tests performed in a production line, required by the manufacturer of the apparatus necessary to ensure its implementation and registration. This makes this process can become a bottleneck on the line.

To this end, not only in order to ensure these test, but also to ensure the registration thereof and the whole process of control, Electrical Safety has developed various test equipment for line endings, namely:

  • Meter Grounding resistance.
  • Leakage Current Meter.
  • Dielectric Strength 5KVca.
  • EBE 0.
  • EBE 2.
  • EBE 4.
  • EFE.

The acquisition and control system is based on a next-generation microcontroller mounted on a plaque selection, filtering, signal processing and measurement, owner. The board is linked to a LCD display which can display all options of the system (settings, test results, etc).

Optionally provided Verification Set, which allows you to control the proper functioning of equipment.

The equipment is delivered with its Calibration Report traced to national standards and a user manual for use.

The components used in the design ensures an excellent quality of work.

Device Specifications
Power Supply: 220Vca, 50 Hz, 6 A, single phase (115 Vca optional).
Test specifications:
  • Test Voltage: 12Vca.
  • Test Current: 25Aca.
  • To test apparatus Class I.
Display Indicator:
  • Display LCD 2 lines.
Control: Totally controlled by microprocessor.
Dimensions:
  • 350 x 350 x 280 (h) mm.
  • Weight: 18 Kg.
Accessories:
  • Plug Test.
  • Clamp Test.
  • Verification SET (optional).
Guarantee:
  • 12 months.
According to:
  • IEC 60335-1 Annex A.
  • IEC 60598-1 Annex Q.

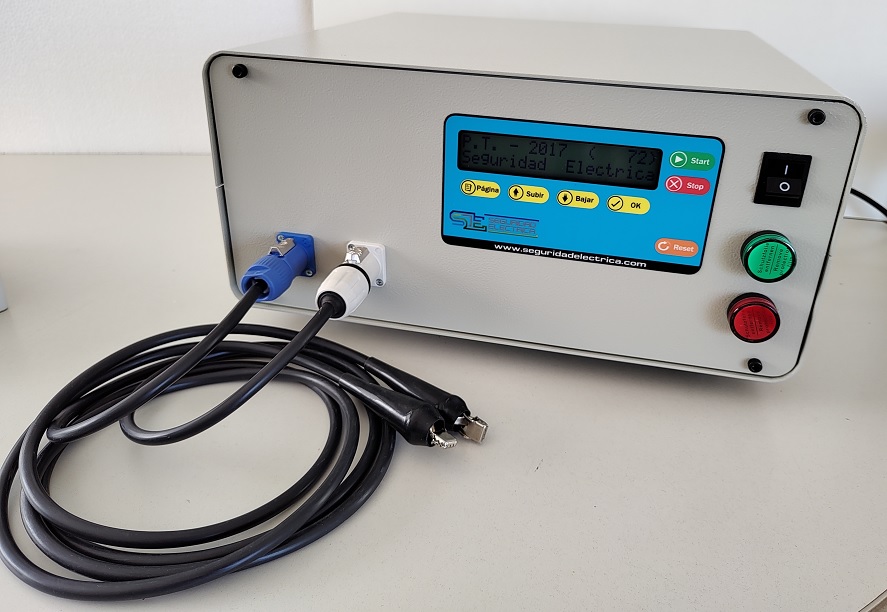

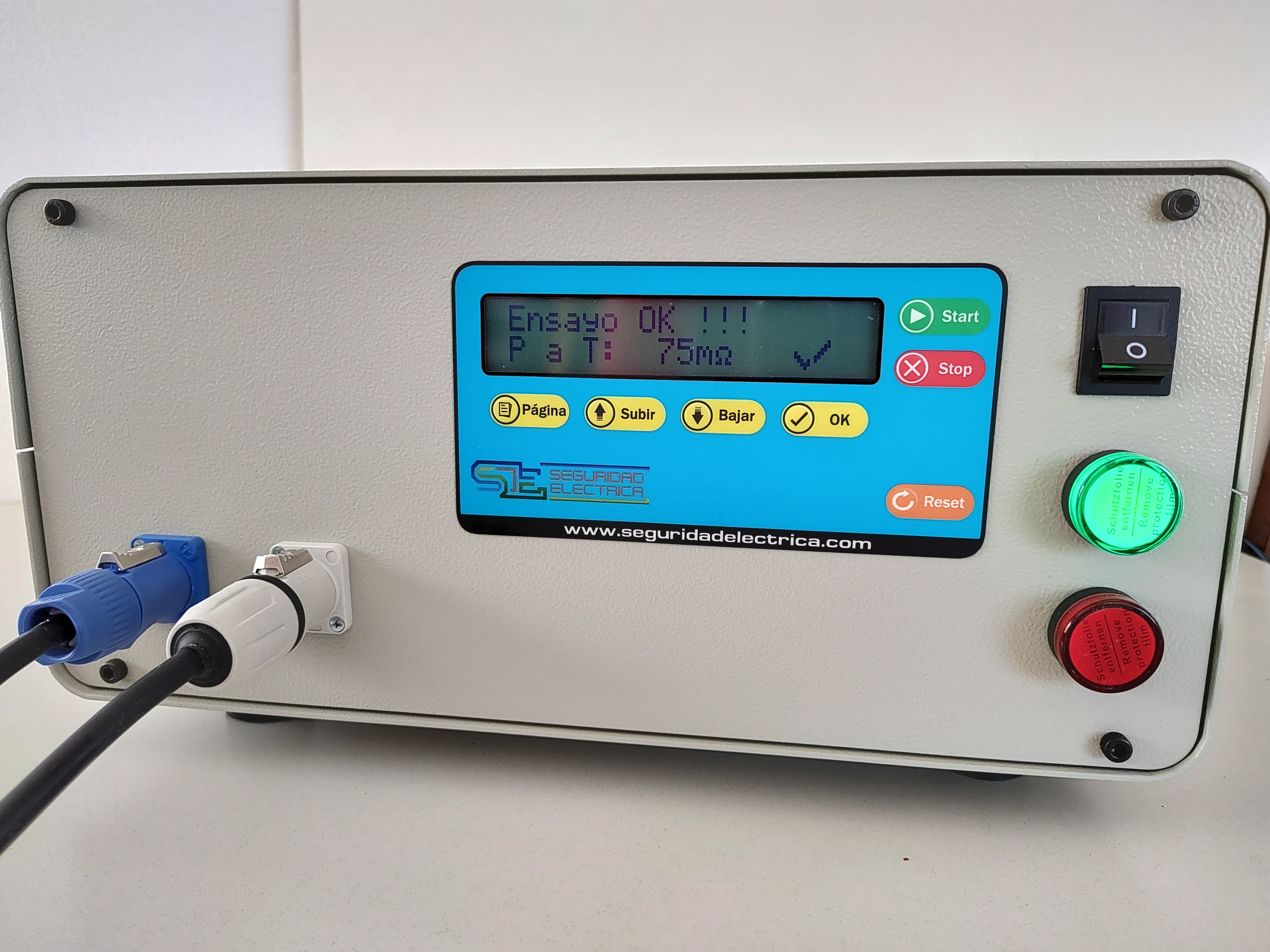

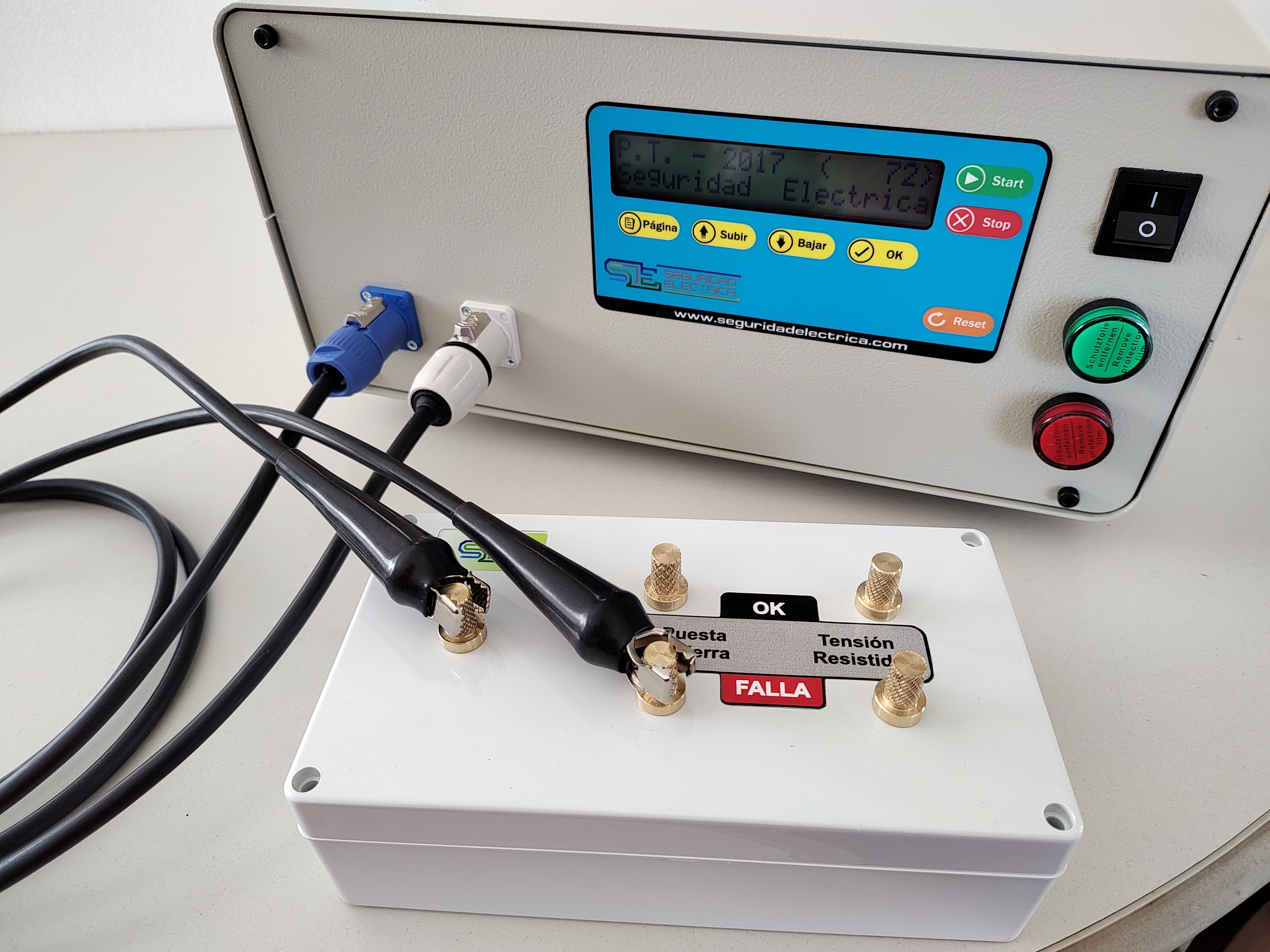

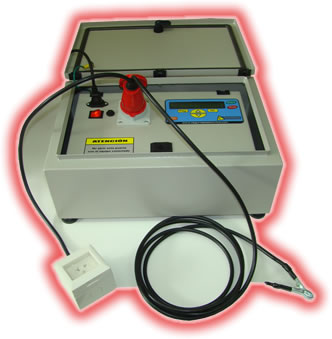

Puesta a Tierra (Frente del equipo) Puesta a Tierra (Pinzas de ensayo)EVD 0 (Equipo de Verificación Diaria)
