Data Logger Reader - DS1921 (Temperature Reader)

The Data Logger Reader - DS 1921 is used to view the thermal behavior of: Refrigerators, Frezzers, exhibitors, bottle coolers, appliances, electronic equipment, fixtures, machine tools, etc.

Download Brochure

The Data Logger Reader - DS 1921 is a software that allows reading and Configuring DS1921 Temperature Loggers.

These data loggers record temperature every time. The user must set the interval (between 1 and 255 min.).

It has a capacity to store temperature data from 2048 with a resolution of 0.5 º C. All data from the temperature are displayed on the main screen and are stored in individual files.

The configuration and reading of the logger is done in less than 30 seconds.

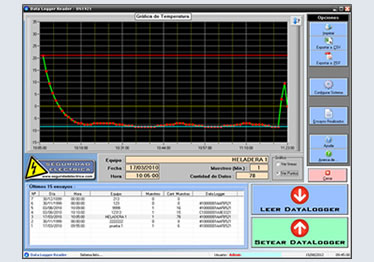

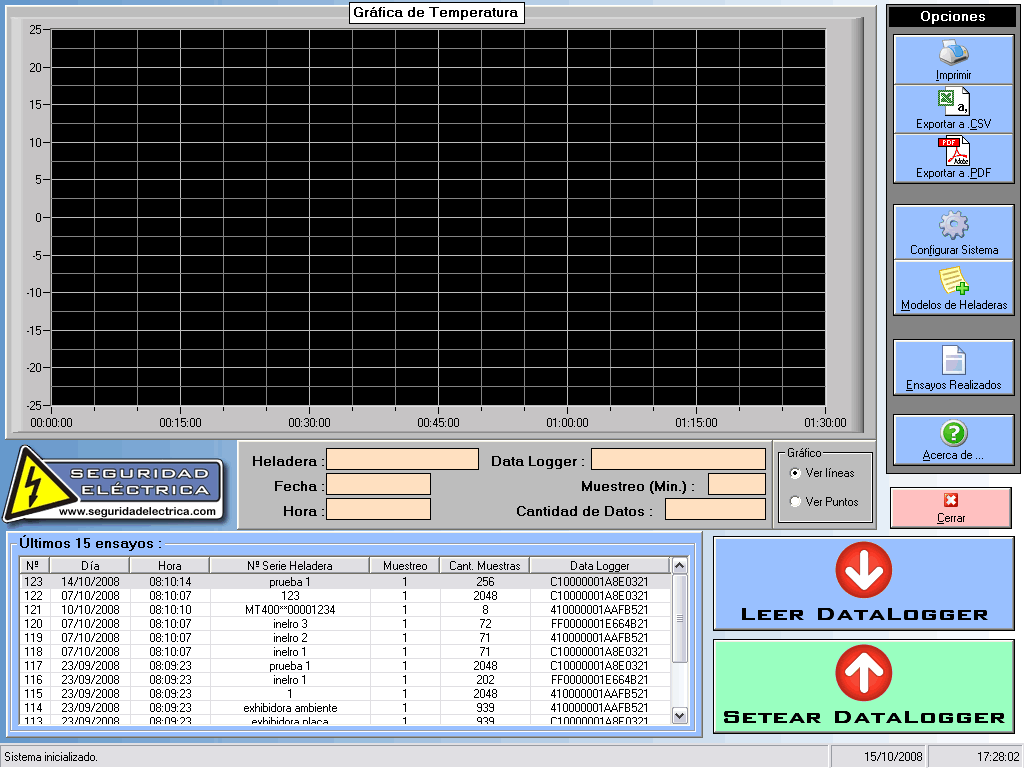

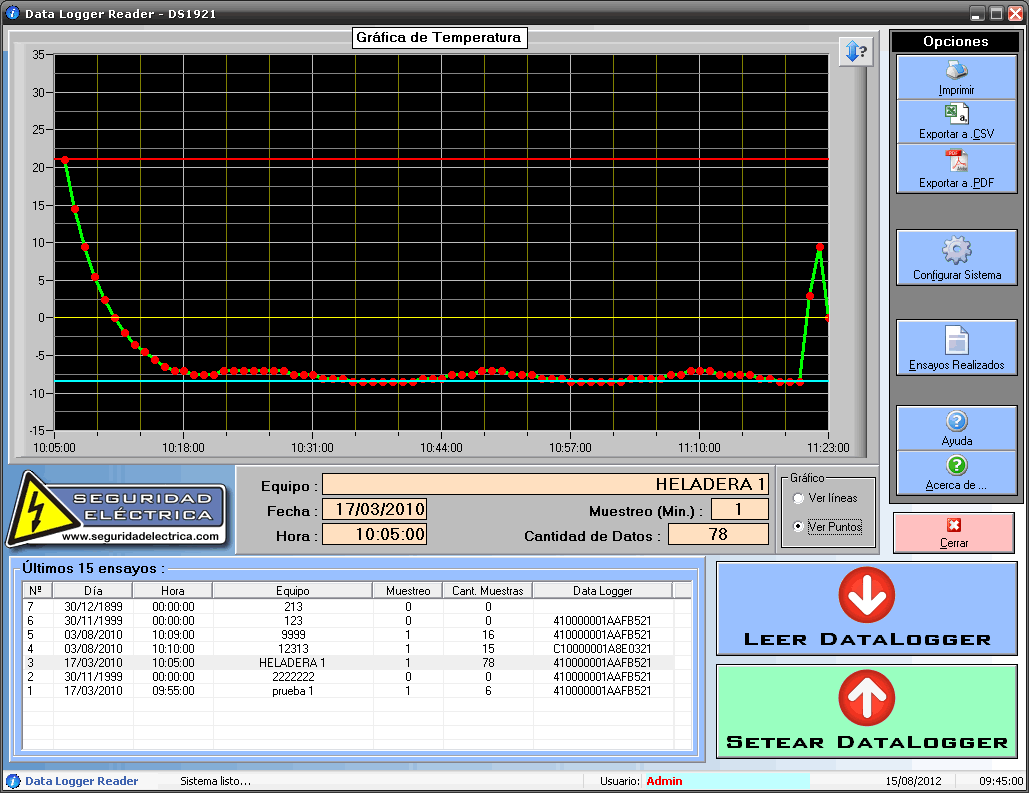

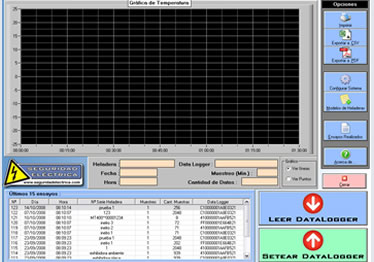

The software allows you to generate the impression of temperature charts and export data from a test to format .Pdf or .Csv.

The Data Logger Reader - DS 1921 is used to view the thermal behavior of: Refrigerators, Frezzers, exhibitors, bottle coolers, appliances, electronic equipment, fixtures, machine tools, etc..

The whole system was designed for an easy and dynamic handling. This combination ensures a correct handling of information to meet the needs of requirements that may require a certification of electrical products or ISO 9001.

Data Logger Specifications: DS1921
Data Logger Measurement Range: -40ºC a +85ºC.
Data Logger Resolution: 0.5ºC
Accuracy: +/- 1ºC.
Data Logger Sampling Rate: 1 a 255 minutos.
Data Logger Size: 2048 (Number of measurements that can store)
Lifetime minimun: 5 años (According to the manufacturer).
Dimensions:
  • Diameter: 17 mm.
  • Thickness: 6 mm.
Material: Stainless-steel..
Software Specifications
Specifications:
  • Software of very easy use.
  • Save all measurements obtained by the DS1921G Data Logger.
  • Generate lists of tests performed.
  • You can search tests by:
    • Number tested serial product.
    • Name of product tested.
    • No Serial Data Logger.
    • Search between dates.
  • Allows to export data to CSV (for Excel).
  • Allows Export report to PDF files.
  • Printing reports with graphs.
  • Only authorized personnel can access the settings of the software.
  • Manual.
  • Installation CD.
Requeriments:
  • O.S.: Windows Xp.
  • 1 USB Port.
  • Resolution: 1024px x 768px
